三种形态，同一套复位逻辑
Three forms, one reset logic
从台面级的系统主机，到可放进口袋的随身设备，Unismart 把同一套芯片复位能力做成了三种使用距离。
From a benchtop console to a pocket-sized device, Unismart shapes the same chip-reset capability into three distances of use.
Unismart
整套系统的核心，承担复位、写入、扫描与检测，覆盖超 4000 个主流芯片型号。
The core of the system: reset, program, scan and verify, covering 4,000+ mainstream chip models.
- 5 英寸电容触摸屏
- 一拖多测试头
- Wi-Fi 自动升级
- 5-inch capacitive touchscreen
- Multi-split jigs
- Wi-Fi auto update
Unismart Mini 1
带屏幕的手持复位仪，可换测试头自适应不同型号，一键完成芯片状态查询。
A handheld resetter with a screen; swappable jigs adapt to models, one tap checks chip status.
- 2 英寸 LCD 屏
- 77.5g / 续航 4.5h
- 升级效率 +30%
- 2-inch LCD screen
- 77.5 g / 4.5 h battery life
- +30% upgrade efficiency
Unismart Mini 2
只有 8 克的终端设备，配合手机 App 无线升级，最快 2 秒完成一次芯片升级。
An 8-gram end-user device paired with a phone app; an upgrade takes as little as 2 seconds.
- 8g / 47×22×11mm
- 蓝牙 5.2 + Type-C
- Printer Helper App
- 8 g / 47×22×11 mm
- Bluetooth 5.2 + Type-C
- Printer Helper app
系统级复位主机
The systematic resetter
Unismart 主机是整个系统的核心。5 英寸电容触摸屏下跑着一套定制 Android 系统，把复位、写入、扫描与检测四件事收在同一个界面里。检测到新版本时，设备通过 Wi-Fi 自动下载并一键安装。
The console is the heart of the system. A customised Android build runs behind a 5-inch capacitive touchscreen, holding reset, programming, scan and verify in one interface. On Wi-Fi it detects, downloads and installs updates in one step.

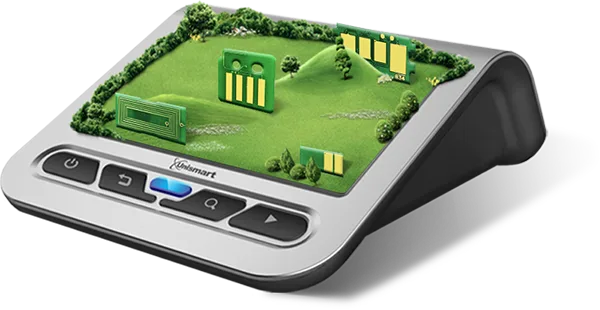

换一个测试头，换一种芯片
Swap a jig, switch a chip
一拖多的测试头方案把成本和灵活性同时解决：只需更换主机前端的测试头，就能复位不同外观的芯片，不必整机替换。
The multi-split jig approach solves cost and flexibility together: replace the jig on the front of the console and you can reset chips of a different form, without replacing the machine.
最新的无线测试头把无线复位模组整合进同一个部件，采购成本可降低近 80%。
The newest RF jig folds the wireless reset module into one part, cutting procurement cost by nearly 80%.
主机规格
Specifications
| 屏幕 | Display | 5 英寸电容触摸屏 | 5-inch capacitive touchscreen |
|---|---|---|---|
| 系统 | OS | 定制 Android 系统 | Customised Android |
| 连接 | Connectivity | Wi-Fi，联网自动检测升级 | Wi-Fi with auto update detection |
| 测试头 | Jigs | 一拖多测试头，兼容 Unismart II 物理接口 | Multi-split jigs, compatible with Unismart II connectors |
| 功能 | Functions | 复位 / 写入 / 扫描 / 检测 | Reset / program / scan / verify |
| 覆盖 | Coverage | 超 4000 个主流芯片型号 | 4,000+ mainstream chip models |
轻量化手持复位仪
The handheld resetter
把系统主机的核心能力压进一台能握在手里的设备。2 英寸屏、77.5 克机身，测试头与探测功能做成一体式设计，换头即换型号，无需手动切换程序。
The console's core capability compressed into something you can hold. A 2-inch screen and a 77.5-gram body; probe and jig are one integrated part, so changing jigs changes models without switching programs by hand.
操作简单Effortless一键返工，自动加载One-tap rework, auto load
省时高效Time-saving单次复位 ≤ 5 秒≤ 5 s per reset
轻便灵活Portable小巧机身，随身携带Compact, carry anywhere

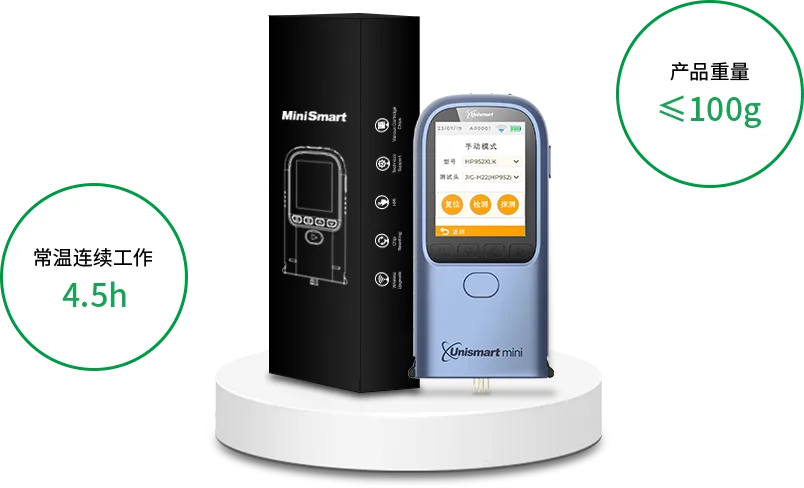

适用面广Wide coverageResets multiple key models支持多款产品型号一体化设计，效率提升 30%
Integrated design, 30% faster
探测与检测合并在一体式测试头上，更换简易、自动匹配不同升级型号，一键即可查询芯片状态，省掉手动切换程序的那一步。
Probing and detection merge into one integrated head that swaps easily and auto-matches the model, checking chip status in a single press — removing the manual program switch.

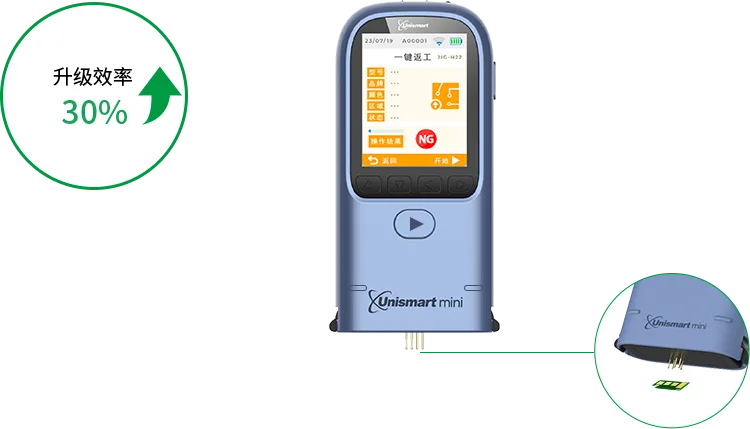

Wi-Fi 升级，把风险降到最低
Wi-Fi updates, minimum risk
设备联网后自动检测新版本、下载升级文件并一键完成安装，不再依赖 PC 端逐台刷写。
Once online, the device finds the new release, downloads it and installs in one step — no per-unit flashing from a PC.
设备规格
Specifications
| 主控 | MCU | 定制 MCU，主频 168MHz | Custom MCU, 168 MHz |
|---|---|---|---|
| 屏幕 | Display | 2 英寸，240×320，非触摸屏 | 2-inch, 240 × 320, non-touch |
| 电池 | Battery | 950mAh 锂聚合物 | 950 mAh Li-polymer |
| 续航 | Runtime | 常温 4.5h · -20℃ 1.5h · 55℃ 2.5h | 4.5 h at room temp · 1.5 h at -20℃ · 2.5 h at 55℃ |
| 尺寸 | Dimensions | 53 × 110 × 21 mm | 53 × 110 × 21 mm |
| 重量 | Weight | 77.5 g | 77.5 g |
| 充电 | Charging | Type-C，DC 5V/1A | Type-C, DC 5V/1A |
| 连接 | Connectivity | Wi-Fi、USB（Type-C） | Wi-Fi, USB (Type-C) |
| 工作环境 | Environment | -20℃ ~ 55℃ | -20℃ ~ 55℃ |
| 语言 | Languages | 中文、英语、法语、俄语、西班牙语 | Chinese, English, French, Russian, Spanish |
它适合小批量、快响应的场景
Built for small batches, fast response
中型商超、小型便利店与维修店、小型工作室，以及终端用户——需要快速完成一次返工、又不值得上系统主机的地方。
Mid-size retail, small repair shops, small studios and end users — places that need one quick rework and don't justify a full console.

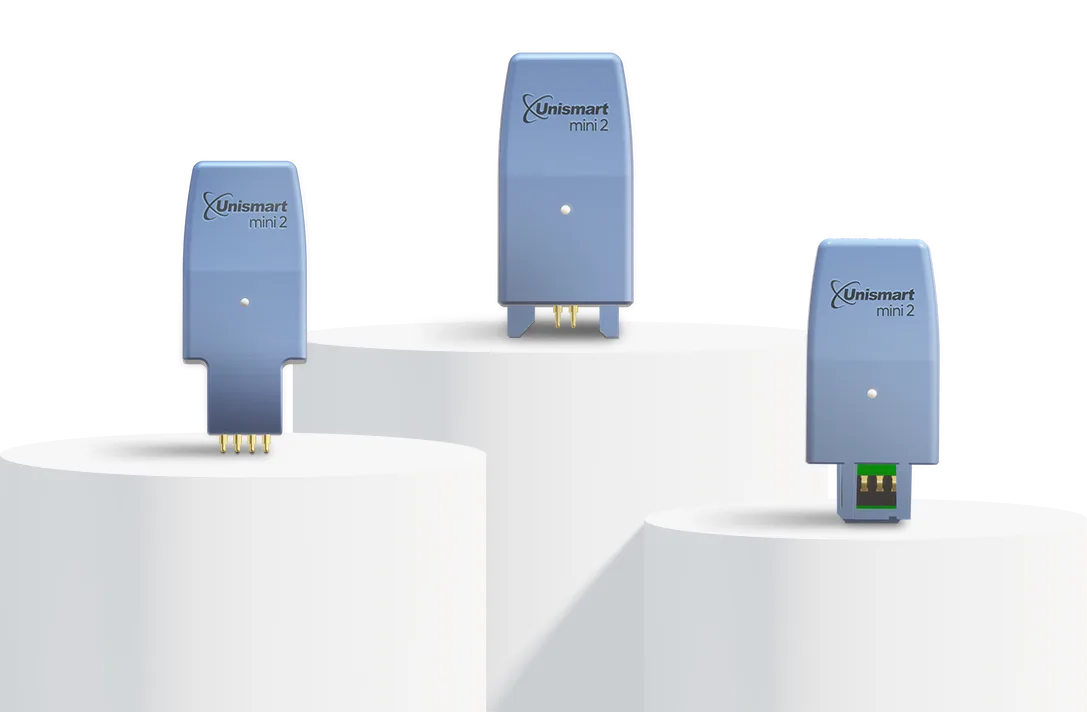

超迷你无线升级设备
The ultra-small wireless device
8 克，47 × 22 × 11 毫米，约等于一枚 U 盘。为终端用户设计：手机装上 Printer Helper，连上蓝牙，一触识别，最快 2 秒完成一次耗材升级。
Eight grams, 47 × 22 × 11 mm — about the size of a USB drive. Designed for end users: install Printer Helper, connect over Bluetooth, touch once, and an upgrade completes in as little as two seconds.
超小超轻Ultra-small一手拿捏Held in one hand
对位简捷Easy alignment智能识别Intelligent ID
极速性能Fast最快 2 秒升级2 s upgrades
省钱省时Economical省力省心Less cost, less fuss轻到几乎感觉不到
Light enough to forget it's there
突破性的超小超轻设计，8 克的重量在保证耐用的同时把体积压到极限，方便携带与存放，也能与耗材一起发货。
A breakthrough in size and weight: 8 grams, durable, compressed to the limit — easy to carry, easy to store, and shippable alongside consumables.

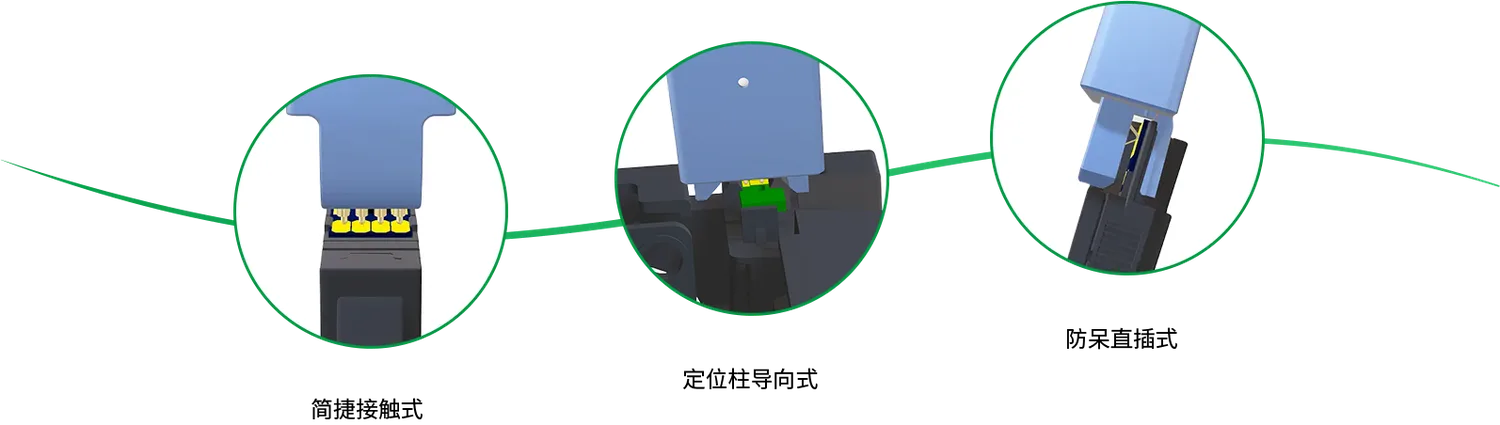

防呆直插，一触识别
Fool-proof contact, one-touch ID
简捷接触式、定位柱导向式、防呆直插式三重设计，快速完成对位；一触智能识别，不需要手动选型。
Contact-style, guide-post and fool-proof plug-in design make alignment immediate; one touch identifies the chip, no manual model selection.
自研 CPU，把等待压到 2 秒
In-house CPU, waiting cut to 2 s
搭载自研 CPU 与智能识别方案，配合 Printer Helper 在手机、平板上操作，实现最快 2 秒升级。App 支持中、英、法、西、葡、阿、俄、日、韩九种语言。
An in-house CPU and intelligent identification, driven from Printer Helper on phone or tablet, reach a two-second upgrade. The app ships in nine languages including Chinese, English, French, Spanish, Portuguese, Arabic, Russian, Japanese and Korean.
设备规格
Specifications
| CPU | CPU | 定制 MCU，主频 160MHz | Custom MCU, 160 MHz |
|---|---|---|---|
| 尺寸 | Dimensions | 47 × 22 × 11 mm | 47 × 22 × 11 mm |
| 重量 | Weight | 8 g | 8 g |
| 无线 | Wireless | 蓝牙 5.2 | Bluetooth 5.2 |
| 数据传输 | Data | USB 2.0 协议 | USB 2.0 protocol |
| 接口 | Port | Type-C | Type-C |
| 供电 | Power | DC 5V / 100–1000mA | DC 5V / 100–1000 mA |
| 工作温度 | Temperature | -20℃ ~ 55℃ | -20℃ ~ 55℃ |
| App | App | Printer Helper，Android 6.0+ / iOS 12+ | Printer Helper, Android 6.0+ / iOS 12+ |
| 语言 | Languages | 中、英、法、西、葡、阿、俄、日、韩 | ZH, EN, FR, ES, PT, AR, RU, JA, KO |
设备背后是一整套系统
A device sits inside a system
硬件只是入口。复位能力由主机、芯片、点数与客户端平台共同支撑，设备软件要同时与这四部分对齐。
The hardware is only the entrance. Reset capability is carried by the box, the chips, the credits and the client platform — device software has to stay aligned with all four.
Unismart 主机
The box
系统核心，持续更新，支持复位、写入、扫描与检测超 4000 个型号。
The core, continuously updated, resetting, programming, scanning and verifying 4,000+ models.
点数
Credits
系统的“燃料”，芯片复位与写入时按次消耗，可在线充值。
The system's fuel, consumed per reset and program, topped up online.
Unismart 芯片
Chips
内置加密程序的半成品芯片，可由主机写入特定型号程序。
Semi-programmed chips with an embedded encrypted program, writable to a specific model.
客户端平台
Platform
PC 端软件，用于维护点数、管理二级客户与升级系统。
Desktop software for credit maintenance, second-level customer management and system updates.
复位一次芯片，省下 0.24–1.46 升水
One reset saves 0.24–1.46 litres of water
只要芯片硬件本身完好，Unismart 就能对它无限次复位。复位一片芯片、多用一次回收耗材，都是对自然资源的实际减量。
As long as the chip hardware is intact, Unismart can reset it without limit. Resetting a chip and reusing a recycled cartridge is a concrete reduction in resource use.
我在这套产品里做的部分
What I built in this family
这是一份设备软件工程师的个人作品页。页面里出现的产品、参数与图片，来自 Unismart 官方公开资料；我把它们整理出来，用来讲清楚这些设备在软件层面是怎么被做出来的。
This is a personal portfolio page for a device software engineer. The products, specifications and images here come from Unismart's public materials; I've gathered them to explain how these devices are built at the software layer.
我做的是设备端那一层：屏幕上的交互、固件里的升级流程、设备与手机之间的无线链路，以及它们如何与后端点数系统和型号库保持一致。
My work is the device layer: the interaction on screen, the upgrade flow in firmware, the wireless link between device and phone, and keeping them consistent with the credit system and the model database behind them.
- 交互层InteractionUnismart 主机触摸界面与设备端 UI 流程Console touch interface and on-device UI flows
- 固件FirmwareMini 1 手持设备的复位、扫描与升级逻辑Reset, scan and upgrade logic on Mini 1
- 无线链路WirelessMini 2 与 Printer Helper 之间的蓝牙通信Bluetooth link between Mini 2 and Printer Helper
- 升级体系UpdatesWi-Fi 自动检测、下载与一键安装Wi-Fi detection, download and one-step install
- 多语言i18n设备端与 App 端多语言资源组织Multi-language resources across device and app
